Construction Features

General

  • We state cabinet depth to the front of the doors, false fronts and drawer fronts as 21 3/4" or 18 3/4" deep.
  • Maple painted cabinets have door panels and five piece drawer front panels of High Density Fiberboard (HDF) to provide a more stable panel.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Dresser vanity and furniture - doors, drawer fronts, false drawer front, ends, face frame, sill, legs, side moldings and top moldings
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Vanity - doors, drawer fronts, false drawer front, face frame, side moldings and top moldings.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Mirrored Cabinet, Framed Mirror and Light - doors, light front, crown molding, sill, side moldings and top moldings.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Linen Cabinetry - doors, drawer fronts, face frame, crown molding, skirt, side-moldings and top molding.
  • Soft close fully-concealed European style hinges.
  • Natural finish interior, shelves and drawers.
  • Backs on dresser vanities, vanities, linen cabinets, mirrored cabinets and framed mirrors are 1/8" Maple laminate hardboard.
  • Crown molding adds 1 3/8" to stated depth and 2 7/8" to stated width for Molding Overlay Construction. Crown molding adds 5/8" to stated depth and 2 7/8" to stated width for Overlay Construction.
  • Durable catalyzed varnish finish.
  • 4" dividers included on vanities with doors and drawers.

Plywood Specifications

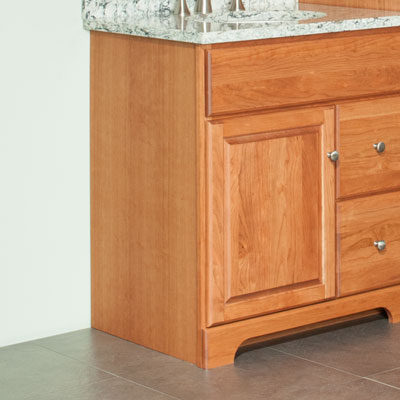

  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.

Drawer

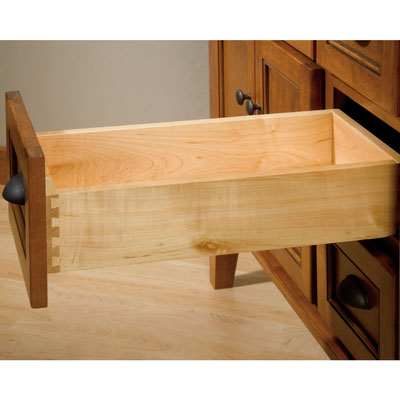

  • English dovetailed, solid 5/8" Maple wood drawer boxes with 5-piece construction.
  • Tandem full extension, undermount, soft-closing drawer glides (or Equivalent).
  • Drawer bottoms are 1/4" birch veneer plywood.

Vanity & Base

  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Door hinges are concealed soft-close with 108 degree opening with integrated soft close door dampers.
  • Cabinet framing parts and corner blocks of 3/4" thick hardwood.
  • Sink door pairs have no center stile to limit plumbing access.
  • Vanity tops are not included with vanity or base price.
  • Vanity bottoms are 1/2" plywood.
  • Tall 33 1/2" height.
  • 4" dividers included on vanities with doors and drawer combination.

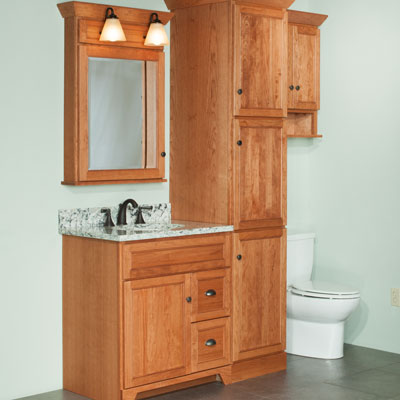

Linen Cabinet

  • The crown molding sub-assembly is shipped inside the cabinet ready to install with instructions for easy assembly.
  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Door hinges are concealed soft-close with 108 degree opening.
  • Shelves are made of 1/2" Birch veneer core plywood with a Birch strip applied to the front edge.
  • Linen Cabinet (86 1/4" tall with crown molding) has 2 fixed shelves and 3 adjustable shelves.
  • LB - Linen Utility has 1 fixed and 3 adjustable shelves.
  • LC/LJ - Linen Cabinet has 2 fixed shelves and 3 adjustable shelves.
  • LD - Linen Cabinet has 1 fixed shelf, 2 adjustable shelves and 3 drawers.
  • LF - Linen Cabinet has 1 fixed shelf, 2 adjustable shelves and 3 drawers.
  • LH - Linen Hamper has 2 fixed shelves, 2 adjustable shelves and 1 roll-out hamper.

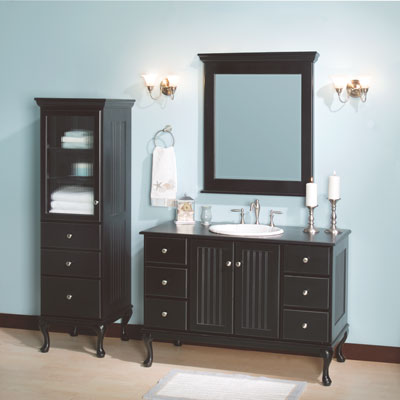

Dresser Vanity, Wall Mount Vanity, Linen Tower & Base Tower

  • FEATURES ARE THE SAME AS VANITY FEATURES EXCEPT FOR THE FOLLOWING:
  • Dresser vanity, linen tower and base tower models have 9" legs mounted to a bottom sill. Wall Mount vanity, linen tower and base tower models do not have legs.
  • Standard with Raised Panel Ends. The Raised Panel style will be Ridgefield when the Ridgefield or Villa door style is chosen; will be Shaker when the Edgewood, Fairfax, Shaker, Old Town, or Shaker Door style is chosen; will be Wilton when the Wilton door style is chosen; and will be Prestige when the Prestige or any remaining Door style is chosen.
  • Maple painted cabinets with raised panel ends have the end panels made from High Density Fiberboard (HDF) to provide a more stable panel.
  • Base Tower with 1 door has 1 adjustable shelf.
  • Partition dividers are standard on widths 48", 54" and 60".
  • Cabinet interiors have a natural finish to brighten the inside for storage use except on glass door models where the interior is completely finished.
  • All open areas are stained and finished.
  • To install inside standard 3/8" base molding on models with legs, use a belt sander to remove about 1/4" from the back of each back leg.
  • Linen Tower - Base can be standard linen cabinet base, with skirt and toe board, or can be 9" legs mounted to a bottom sill. The height with standard base is 61" and with 9" legs and sill is 67". The height of the Wall Mount Linen Tower is 57 1/8".
  • All Linen Tower models have beveled glass in the top door. Two-door models have 1 fixed and 3 adjustable shelves; One-door with drawer stack models have 1 fixed and 2 adjustable shelves. The crown molding with plywood insert to form top is included.
  • All Linen Tower Models - The crown molding with plywood insert, to form the top, is included.
  • All Linen Tower Models - All open areas or areas behind a glass door are stained and finished.
  • All Linen Tower Models - Glass is 3/16" clear glass with beveled edges. Optional Reeded Glass is 3/16" thick.

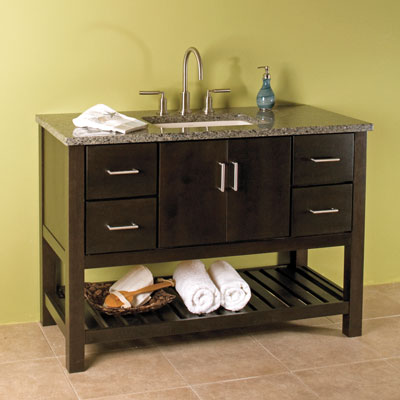

Table Vanity

  • Available in Ovation and Parkway Collections.
  • Square (2 3/8" x 2 3/8") solid Cherry, Maple or Oak wood legs.
  • Ends of Cherry, Maple, and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Bottom shelf on Table Vanities is standard as a slat bed bottom shelf made of solid Cherry, Cherry Rustic, Maple or Oak wood. A solid bottom shelf with Wood trim surrounding 1/2" Cherry, Maple or Oak veneer core plywood is optional.
  • Width dimensions are the same as Molding Overlay contruction cabinets.

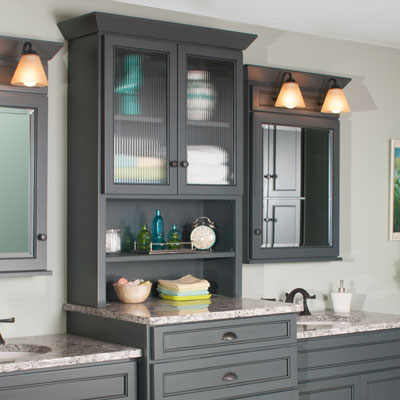

Counter Wall Cabinet

  • The crown molding sub-assembly is shipped ready to install with instructions for easy assembly.
  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Door hinges are concealed soft-close with 106 degree - 110 degree opening.
  • Shelves are made of 1/2" Birch veneer core plywood with a birch strip applied to the front edge.
  • Counter Wall Cabinet (48 1/8" tall with crown molding) is designed to sit on a vanity top. These models are 12" or 10 1/4" deep.
  • Glass for Counter Wall Cabinet is 3/16" clear glass with beveled edge, except for Monterey, which has Reeded glass as standard. Optional Reeded glass is 3/16" thick.
  • All open areas or areas behind a glass door are stained and finished.
  • TG, TJ - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves. It is stained and finished inside. Top door is glass.
  • TF - Counter Wall Cabinet has 1 fixed, 1 adjustable shelf and 3 drawers. It is stained and finished inside. Top door is glass.
  • TK, TL - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves.
  • TE - Counter Wall Cabinet has 1 fixed and 1 adjustable shelf and 3 drawers.
  • TM - Counter Wall Cabinet with Open Shelves has 1 fixed and 2 adjustable shelves.
  • TP, TY - Counter Wall Cabinet has 2 fixed and 1 adjustable shelf and 1 drawer.
  • TX - Counter Wall Cabinet has 2 fixed and 1 adjustable shelf and 1 drawer. It is stained and finished inside. Top door is glass.

Bath Light

  • Lights are built into the mirrored cabinet.
  • Light stems and fittings can be Satin Nickel, Oil-Rubbed Bronze or Chrome.
  • Light stems use a canopy made for neckless globes without thumb screws.
  • UL approved light fixture.
  • Maximum bulb size is 60 watts. Bulbs are not included.
  • For Electrical Box Placement for Bath Lights: Center the electrical box for the cabinet width and 3 3/8" down from where the top of the crown is mounted for Overlay collections of Ashford, Gentry, Lambiere, and Valencia add 4 1/8" down from where the top of the crown is mounted for Molding Overlay collecctions of Estate, Fireside, Heirloom, Monterey and Nottingham.
  • Light sconces are available.
  • Light stems use a 2 5/8" canopy.

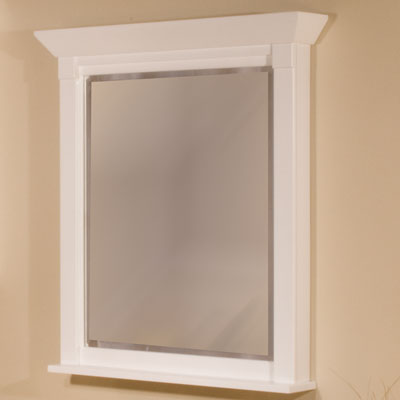

Framed Mirror

  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves veneer surfaces.
  • Framed Mirrors, Lighted Framed Mirrors and Tall Framed Mirrors have 3/16" mirror with beveled edges.
  • Mitered Frame Mirrors do not have a crown, sill or ends and are solid wood. They have 3/16" mirror with beveled edges.

Mirrored Cabinet

  • Hinges are concealed soft-close with 108 degree opening.
  • Breakfront models are available in 48", 54" and 60" widths.
  • All cabinets have three adjustable shelves. Shelves are 5/8" Baltic Birch except for corner mirrored cabinets and Tri-views which have two adjustable shelves of 1/2" Birch veneer core plywood with a Birch strip applied to the front edge.
  • Surface mount mirrored cabinets have 3/16" mirror with beveled edge and a 1/4" plywood back on doors.
  • Surface mount mirrored cabinets can have lights built-in. The lights have features as outlined under "Bath Light Features".
  • Bottom sill adds 1" to width and depth.

Toilet Topper and Wall Cabinet

  • Hinges are concealed soft-close with 106 degree - 110 degree opening.
  • All Toilet Toppers and Wall Storage Cabinets have two adjustable shelves.
  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves veneer surfaces.
  • Bottom sill adds 1" to width and depth.
  • Laundry room wall cabinets do not have a crown or a bottom sill.

General

  • We state cabinet depth to the front of the doors, false fronts and drawer fronts as 21 3/4" or 18 3/4" deep.
  • Maple painted cabinets have door panels and five piece drawer front panels of High Density Fiberboard (HDF) to provide a more stable panel.
  • Stained cabinets in door styles of Shaker, Wilton, and Old Town have door panels and five piece drawer front panels of 1/4" Cherry, Cherry Rustic, Maple, or Oak plywood.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Vanity - Prestige style doors, Prestige style drawer fronts, false drawer front, face frame and side moldings.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Mirrored Cabinet, Tri-View and Light - doors, light front and crown molding.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Framed Mirror - face and crown molding.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Linen Cabinetry - Prestige style doors, Prestige style drawer fronts, false drawer front, face frame and side moldings.
  • Quentin, in RTF white, is an exception to the above and has doors, drawer fronts and light fronts that are white Ridgid Thermofoil (RTF) over medium density fiberboard (MDF) core.
  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with a smooth and voidless MDF core for vanities, linen towers, linen cabinets, counter wall cabinets, framed mirrors, mirrored cabinets and toilet toppers.
  • Natural finish interior, shelves and drawers.
  • Backs on dresser vanities, vanities, linen cabinets, mirrored cabinets and framed mirrors are 1/8" Maple laminate hardboard.
  • Crown molding adds 1 1/4" to stated depth and 2 1/2" to stated width for Molding Overlay Construction Collections. Crown molding adds 1/2" to stated depth and 2 1/2" to stated width for Overlay Construction Collections.
  • Cabinet face and toe board are the full width stated but the plywood ends are each inset 1/4" for ease of installation next to a wall or cabinet.
  • Durable catalyzed varnish finish.

Drawer

  • English dovetailed, 5/8" Baltic Birch 11 plywood drawer boxes with 5-piece construction. Drawer sides and ends have a birch strip applied to the top edge.
  • Drawer bottoms are 1/4" birch veneer plywood.
  • Soft Close full access undermount drawer glides

Vanity & Base

  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surface for vanities, linen towers, linen cabinets, counter wall cabinets, framed mirrors, mirrored cabinets and toilet toppers.
  • Door hinges are concealed self-close with 106 degree - 110 degree opening.
  • Cabinet framing parts and corner blocks of 3/4" thick hardwood.
  • Sink door pairs have no center stile to limit plumbing access.
  • Vanity tops are not included with vanity or base price.
  • Vanity bottoms are 1/2" plywood.
  • Tall 33 1/2" height.

Linen Tower

  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • The crown molding with plywood inset to form top is included.
  • All open areas or areas behind a glass door are stained and finished.
  • Glass is 3/16" clear glass with beveled edges.

Linen Cabinet

  • The crown molding sub-assembly is shipped ready to install with instructions for easy assembly.
  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Door hinges are concealed self-close with 106 degree - 110 degree opening.
  • Linen Cabinet shelves are made of 1/2" Birch veneer core plywood with a birch strip applied to the front edge.
  • Linen Cabinet (85 3/4" tall with crown molding) has 2 fixed shelves and 3 adjustable shelves.

Counter Wall Cabinet

  • The crown molding sub-assembly is shipped ready to install with instructions for easy assembly.
  • Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
  • Door hinges are concealed self-close with 106 degree - 110 degree opening.
  • Shelves are made of 1/2" Birch veneer core plywood with a birch strip applied to the front edge.
  • Counter Wall Cabinet (47 1/2" tall with crown molding) is designed to sit on a vanity top. These models are 12" or 10 1/4" deep.
  • Glass for Counter Wall Cabinet is 3/16" clear glass with beveled edges. Optional Reeded glass is 3/16" thick.
  • All open areas or areas behind a glass door are stained and finished.
  • TG - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves. It is stained and finished inside. Top door is glass.
  • TK - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves. Top door is wood.
  • TM - Counter Wall Cabinet with Open Shelves has 1 fixed and 2 adjustable shelves.

Bath Light

  • Lights are built into the mirrored cabinet.
  • Light stems and fittings can be Satin Nickel, Oil-Rubbed Bronze or Chrome.
  • Light stems use a 2 5/8" canopy.
  • UL approved light fixture.
  • Maximum bulb size is 60 watts. Bulbs are not included.
  • Recessed light sconce is available.

Framed Mirror

  • Framed Mirrors have 3/16" non-beveled mirror.
  • Mitered Frame Mirrors do not have a crown, sill or ends and are solid wood. They have 3/16" non-beveled mirror. Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.

Mirrored Cabinet

  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surface for mirrored cabinets.
  • Hinges are concealed self-close with 110 degree opening.
  • All cabinets have two adjustable shelves. Shelves are 1/2" (5/8" for 48" Tri-View Shelves) Birch veneer core plywood with a Birch strip applied to the front edge.
  • Surface mount mirrored cabinets have 1/8" mirror and a 1/8" Maple laminate hardwood back on doors.
  • Tri-View mirrored cabinets have 3/16" plate mirror (not beveled) with a protective vinyl backing.
  • Surface mount mirrored cabinets can have lights built-in. The lights have features as outlined under "Bath Light Features".

Toilet Topper

  • Hinges are concealed self-close with 110 degree opening.
  • The standard toilet topper has one adjustable shelf. The large toilet topper has two adjustable shelves. Shelves are of 1/2" Birch veneer core plywood with a birch strip applied to the front edge.
  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surface for toilet toppers.

General

  • We state cabinet depth to the front of the doors, false fronts and drawer fronts as 21 3/4" or 18 3/4" deep.
  • Maple painted cabinets have door panels of High Density Fiberboard (HDF) to provide a more stable panel.
  • Stained cabinets in door styles of Shaker, Wilton, and old Town have panels of 1/4" Cherry, Rustic Cherry, Maple, or Oak plywood.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Vanity - doors, drawer fronts, false drawer front and face frame.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Tri-View and Recessed Mirrored Cabinet - doors and crown molding.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Framed Mirror - face and crown molding.
  • Solid Cherry, Cherry Rustic, Maple or Oak wood for Linen Cabinet - doors, drawer fronts, face frame and crown molding.
  • Dover, in RTF white, is an exception to the above and has doors, drawer fronts, false drawer fronts and light fronts that are white Ridgid Thermofoil (RTF) over medium density fiverboard (MDF) core.
  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with an MDF core.
  • Natural finish interior, shelves and drawers.
  • Backs on vanities, linen cabinets, mirrored cabinets and framed mirrors are 1/8" birch laminate hardboard.
  • Crown molding adds 1 1/4" to stated depth and 2 1/2" to stated width.
  • Cabinet face and toe board are the full width stated but the plywood ends are each inset 1/4" for ease of installation next to a wall or cabinet.
  • Durable catalyzed varnish finish.

Drawer

  • Doweled drawer box construction using 1/2" veneer core plywood drawer boxes
  • Drawer sides and ends of 1/2" veneer core plywood with a birch strip applied to the top edge.
  • Drawer bottoms are 1/8" birch laminate hardboard.
  • Epoxy coated 3/4 extension, rust resistant, smooth-gliding drawer glides.

Vanity

  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with an MDF core.
  • Door hinges are concealed self-close with 106 degree - 110 degree opening.
  • Cabinet framing parts and corner blocks of 3/4" thick hardwood.
  • Sink door pairs have no center stile to limit plumbing access.
  • Vanity tops are not included with vanity or base price.
  • Vanity bottoms are 1/2" plywood.
  • Height of 31 3/8" or 33 1/2".

Linen Cabinet

  • The crown molding sub-assembly is shipped ready to install with instructions for easy assembly.
  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with an MDF core.
  • Door hinges are concealed self-close with 106 degree - 110 degree opening.
  • Linen Cabinet shelves are made of 1/2" Maple veneer core plywood with a birch strip applied to the front edge.
  • Linen Cabinet (85 3/4" tall with crown molding) has 2 fixed shelves and 3 adjustable shelves.

Tri-View & Recessed Mirrored Cabinet

  • Satin Nickel is standard for Hardware, Push Plates and Light fittings for all collections. Chrome and Oil Rubbed Bronze hardware and Push plates are optional.
  • Wood face is solid Cherry, Cherry Rustic, Maple or Oak wood.
  • Mirrored Cabinet box is of 1/2" Cherry, Cherry Rustic, Maple or Oak MDF core plywood.
  • Tri-View mirrored cabinets have 3/16" plate mirrors with a protective vinyl backing.
  • Wood framed mirror doors have 1/8" mirror. For Dover white RTF the door will be RTF white.
  • Shelves are 1/2" veneer core plywood with a banded front edge except for 48" which is banded 5/8" veneer core plywood..
  • Backs are 1/8" birch laminate hardboard.
  • The standard light insert is solid Cherry, Cherry Rustic, Maple or Oak wood.
  • Chrome and Oil Rubbed Bronze light fittings are optional.

Framed Mirror

  • Framed Mirrors have 3/16" non-beveled mirror.
  • Mitered Frame Mirrors do not have a crown. They have 3/16" non-beveled mirror.
  • Framed Mirror crown is solid wood.
  • Ends of Cherry, Cherry Rustic, Maple and Oak are 1/2" thick and have a wood veneer face and back with an MDF core.

Toilet Topper

  • Hinges are concealed self-close with 107 degree opening.
  • The standard toilet topper has one adjustable shelf. Shelves are of 1/2" Birch veneer core plywood with a Birch strip applied to the front edge.

General

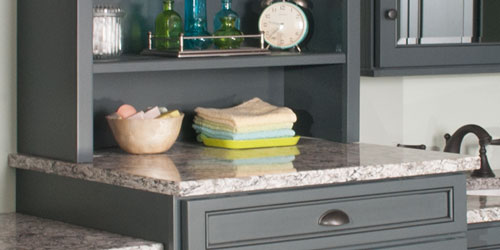

  • Cambria is a stone surface produced from natural quartz, one of nature’s hardest minerals. Cambria quartz surfaces are stronger than granite.
  • Cambria is certified by NSF International (Standard 51 Food Equipment Materials) as safe for use as a food preparation surface. Its non-porous surface makes it impossible for bacteria to penetrate and grow.
  • Unlike other natural stone surfaces, you never have to seal, polish or recondition Cambria.
  • Cambria is maintenance-free; simply wash with warm water. Do not use bleach, abrasive or soft scrub type products. Unlike granite, Cambria will resist stains from fruit juices, food coloring, coffee, tea, wine, and grape juice.
  • Cambria is not heat proof, chemical proof or fracture proof in any form. Be aware of damaging exposure to these potential damaging acts upon your Cambria top.
  • Recycling processes - Cambria recycles and recovers 98% of the water used in its polishing processes through a series of unique settling and filtering techniques. Cambria also offers distinct product advantages in the areas of environmental health and safety.
  • Cambria is certified by the GREENGUARD Environmental Institute under the GREENGUARD Standard for Low Emitting Materials, which means Cambria does not off-gas and contains zero formaldehyde or volatile organic compounds (VOCs). Pure natural quartz surfaces by Cambria have been tested and are indeed radon free.
  • Cambria quartz is backed by a lifetime limited warranty against defects in manufacturing. Woodpro and/or Cambria are not responsible for incidental damages or expenses arising from defective products. (See www.cambriausa.com for more information).
  • The undermount bowl has a limited lifetime warranty against defects in manufacturing. Woodpro and/or the manufacturer is not responsible for incidental damages or expenses arising from defective products
  • For orders of 10 or more of the same size top please allow an additional 2 week cycle for each 10 tops.
  • Woodpro offers 20 of the best selling colors. Please visit www.cambria.com for additional colors. Some restrictions apply.
