We state cabinet depth to the front of the doors, false fronts and drawer fronts as 21 3/4" or 18 3/4" deep.
Painted Cabinets have doors made from HDF.
Solid Cherry, Cherry Rustic, Maple or Oak wood for Dresser vanity and furniture - doors, drawer fronts, false drawer front, ends, face frame, sill, legs, side moldings and top moldings
Solid Cherry, Cherry Rustic, Maple or Oak wood for Vanity - doors, drawer fronts, false drawer front, face frame, side moldings and top moldings.
Solid Cherry, Cherry Rustic, Maple or Oak wood for Mirrored Cabinet, Framed Mirror - doors, crown molding, sill, side moldings and top moldings.
Solid Cherry, Cherry Rustic, Maple or Oak wood for Linen Cabinetry - doors, drawer fronts, face frame, crown molding, skirt, side-moldings and top molding.
Soft close fully-concealed European style hinges.
Natural finish interior, shelves and drawers.
Backs on dresser vanities, vanities, linen cabinets, mirrored cabinets and framed mirrors are 1/8" Maple laminate hardboard.
Crown molding adds 1 3/8" to stated depth and 2 7/8" to stated width for Molding Overlay Construction.
Crown molding adds 5/8" to stated depth and 2 7/8" to stated width for Overlay Construction.
Durable catalyzed varnish finish.
Plywood Specifications
Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
Drawer
English dovetailed, solid 5/8" Maple wood drawer boxes with 5-piece construction.
Tandem full extension, undermount, soft-closing drawer glides (or Equivalent).
Drawer bottoms are 1/4" birch veneer plywood.
Counter Wall Cabinet
The crown molding sub-assembly is shipped ready to install with instructions for easy assembly.
Ends of Cherry, Cherry Rustic, Maple and Oak 1/2" veneer core plywood includes a smooth and voidless MDF cross band next to the face and back veneers which improves the veneer surfaces.
Door hinges are concealed soft-close with 106 degree - 110 degree opening.
Shelves are made of 1/2" Birch veneer core plywood with a birch strip applied to the front edge.
Counter Wall Cabinet (48 1/8" tall with crown molding) is designed to sit on a vanity top. These models are 12" or 10 1/4" deep.
Glass for Counter Wall Cabinet is 3/16" clear glass with beveled edge.
All open areas or areas behind a glass door are stained and finished.

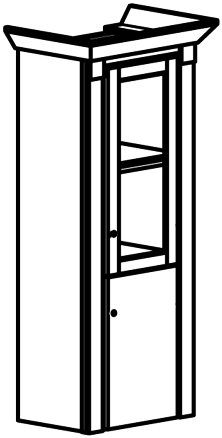

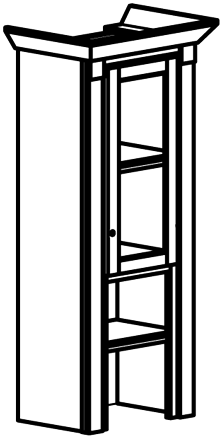

TG, TJ - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves. It is stained and finished inside. Top door is glass.

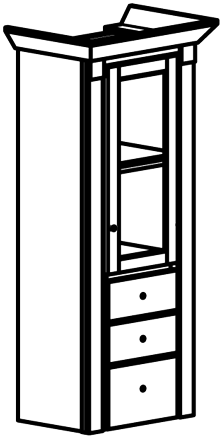

TF - Counter Wall Cabinet has 1 fixed, 1 adjustable shelf and 3 drawers. It is stained and finished inside. Top door is glass.

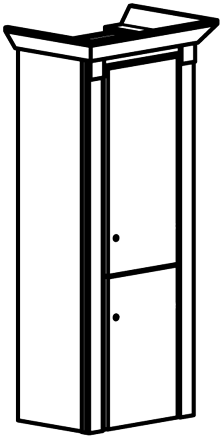

TK, TL - Counter Wall Cabinet has 1 fixed and 2 adjustable shelves.

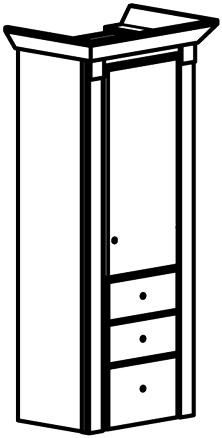

TE - Counter Wall Cabinet has 1 fixed and 1 adjustable shelf and 3 drawers.
TM - Counter Wall Cabinet with Open Shelves has 1 fixed and 2 adjustable shelves.
TP, TY - Counter Wall Cabinet has 2 fixed and 1 adjustable shelf and 1 drawer.
TX - Counter Wall Cabinet has 2 fixed and 1 adjustable shelf and 1 drawer. It is stained and finished inside. Top door is glass.

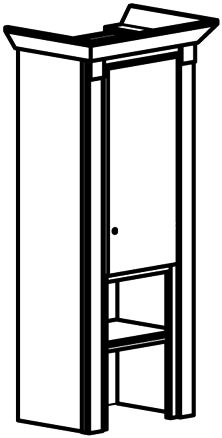

Drawing represents this model's configuration but may not
be for the exact width, door style or trim.
To order this model, take a print of this page, along with your
Door Style and Wood-Color Selection, to your local Showroom (see Dealer Locator to select a Showroom in your area).
